Compound Module ONU_Port

Package: PON.ONU
File: src/ONU/ONU_IF.ned

TODO auto-generated module

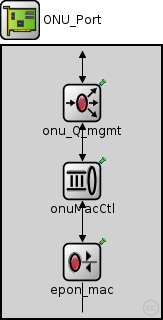

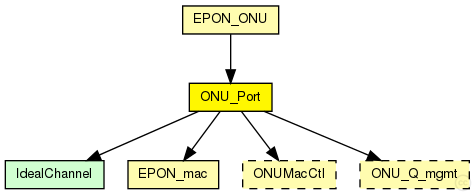

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

EPON_ONU (compound module)

TODO auto-generated module

Parameters:

Name	Type	Default value	Description
QMgmtUnit	string	"ONU_QPL_RR"
MacCtlModule	string	"ONUMacCtl_NP"

Properties:

Name	Value	Description
display	i=block/ifcard;bgb=159,272

Gates:

Name	Direction	Size	Description
netwIn	input
netwOut	output
phys	inout

Unassigned submodule parameters:

Name	Type	Default value	Description
epon_mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_mac.txQueueLimit	int	2	maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.
epon_mac.queueModule	string	""	name of optional external queue module
epon_mac.mtu	int	1500
onu_Q_mgmt.regTimeOut	int
onu_Q_mgmt.queueLimit	int
onu_Q_mgmt.statsGranularity	double

Source code:

//
// TODO auto-generated module
//
module ONU_Port
{
    parameters:
        string QMgmtUnit = default("ONU_QPL_RR");
        string MacCtlModule = default("ONUMacCtl_NP");

        @display("i=block/ifcard;bgb=159,272");

    gates:
        input netwIn;
        output netwOut;
        inout phys;

    submodules:
        onuMacCtl: <MacCtlModule> like ONUMacCtl {
            @display("p=80,135");
        }
        epon_mac: EPON_mac {
            @display("p=80,216;i=block/rxtx");
            promiscuous = true;
        }
        onu_Q_mgmt: <QMgmtUnit> like ONU_Q_mgmt {
            @display("p=80,57");
        }
    connections:
        epon_mac.upperLayerOut --> onuMacCtl.lowerLayerIn;
        onuMacCtl.lowerLayerOut --> epon_mac.upperLayerIn;

        onu_Q_mgmt.lowerLayerOut --> onuMacCtl.upperLayerIn;
        onu_Q_mgmt.upperLayerOut --> netwOut;

        epon_mac.phys <--> phys;
        onuMacCtl.upperLayerOut --> onu_Q_mgmt.lowerLayerIn;
        netwIn --> onu_Q_mgmt.upperLayerIn;
}
