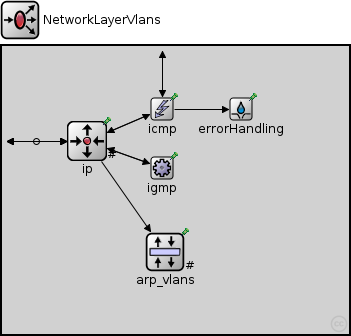

Compound Module NetworkLayerVlans

Package: Vlans.networklayer
File: src/networklayer/NetworkLayerVlans.ned

Network layer of an IP node.

Interfaces to transport layer: TCP, UDP, echo/ping, RSVP

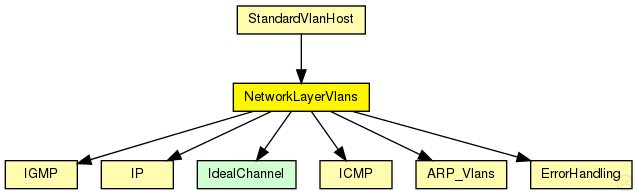

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

StandardVlanHost (compound module)

IP host with TCP, UDP layers and applications.

Parameters:

Name	Type	Default value	Description
proxyARP	bool	true

Properties:

Name	Value	Description
display	i=block/fork

Gates:

Name	Direction	Description
ifIn [ ]	input
tcpIn	input
udpIn	input
sctpIn	input	I.R.
rsvpIn	input
ospfIn	input
pingIn	input
MANETIn	input
ifOut [ ]	output
TCPOut	output
udpOut	output
sctpOut	output	I.R.
rsvpOut	output
ospfOut	output
pingOut	output
MANETOut	output

Unassigned submodule parameters:

Name	Type	Default value	Description
ip.procDelay	double	0s
arp_vlans.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
arp_vlans.retryCount	int	3	number of times ARP will attempt to resolve an IP address
arp_vlans.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
arp_vlans.globalARP	bool	false

Source code:

//
// Network layer of an \IP node.
//
// Interfaces to transport layer: TCP, UDP, echo/ping, RSVP
//
module NetworkLayerVlans
{
    parameters:
        bool proxyARP = default(true);
        @display("i=block/fork");
    gates:
        input ifIn[];
        input tcpIn;
        input udpIn;
        input sctpIn;   //I.R.
        input rsvpIn;
        input ospfIn;
        input pingIn;
        input MANETIn;
        output ifOut[];
        output TCPOut;
        output udpOut;
        output sctpOut; //I.R.
        output rsvpOut;
        output ospfOut;
        output pingOut;
        output MANETOut;

    submodules:
        ip: IP {
            parameters:
                timeToLive = 32;
                multicastTimeToLive = 32;
                fragmentTimeout = 60s;
                protocolMapping = "6:0,17:1,1:2,2:3,46:4,89:5,132:6,254:7,135:7";
                @display("p=85,95;q=queue");
            gates:
                transportIn[8];
                transportOut[8];
                queueIn[sizeof(ifIn)];
        }
        arp_vlans: ARP_Vlans {
            parameters:
                proxyARP = proxyARP;
                @display("p=163,206;q=pendingQueue");
            gates:
                nicOut[sizeof(ifOut)];
        }
        icmp: ICMP {
            parameters:
                @display("p=160,63");
        }
        igmp: IGMP {
            parameters:
                @display("p=160,122");
        }
        errorHandling: ErrorHandling {
            parameters:
                @display("p=239,63");
        }
    connections allowunconnected:
        // transport Layer
        ip.transportOut[0] --> TCPOut;
        ip.transportIn[0] <-- tcpIn;

        ip.transportOut[1] --> udpOut;
        ip.transportIn[1] <-- udpIn;

        ip.transportOut[2] --> icmp.localIn;
        ip.transportIn[2] <-- icmp.sendOut;

        ip.transportOut[3] --> igmp.localIn;
        ip.transportIn[3] <-- igmp.sendOut;

        ip.transportOut[4] --> rsvpOut;
        ip.transportIn[4] <-- rsvpIn;

        ip.transportOut[5] --> ospfOut;
        ip.transportIn[5] <-- ospfIn;

        ip.transportOut[6] --> sctpOut;     //I.R.
        ip.transportIn[6] <-- sctpIn;

        ip.transportOut[7] --> MANETOut;
        ip.transportIn[7] <-- MANETIn;

        icmp.pingOut --> pingOut;
        icmp.pingIn <-- pingIn;

        icmp.errorOut --> errorHandling.in;

        ip.queueOut --> arp_vlans.ipIn;

        // L2 interfaces to IP and from ARP
        for i=0..sizeof(ifOut)-1 {
            ifIn[i] --> { @display("m=s"); } --> ip.queueIn[i];
        }
}
