Simple Module PON_Splitter

Package: PON
File: src/PON_Splitter.ned

C++ definition

TODO auto-generated module

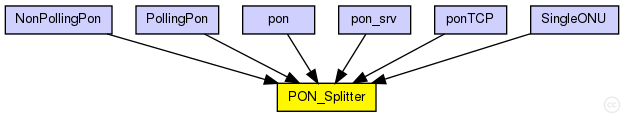

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Networks:

NonPollingPon (network)	(no description)
PollingPon (network)	(no description)
pon (network)	(no description)
pon_srv (network)	(no description)
ponTCP (network)	(no description)
SingleONU (network)	(no description)

Parameters:

Name	Type	Default value	Description
haltOn	int	10

Properties:

Name	Value	Description
node
display	i=device/hub

Gates:

Name	Direction	Size	Description
portu	inout
portg [ ]	inout		to stations; each one represents a port

Source code:

//
// TODO auto-generated module
//
simple PON_Splitter
{
    parameters:
        @node();
        @display("i=device/hub");

        int haltOn = default(10);
    gates:
        inout portu;
        inout portg[];  // to stations; each one represents a port
}
