Network NonPollingPon

Package: default
File: simulations/NonPollingPon.ned

(no description)

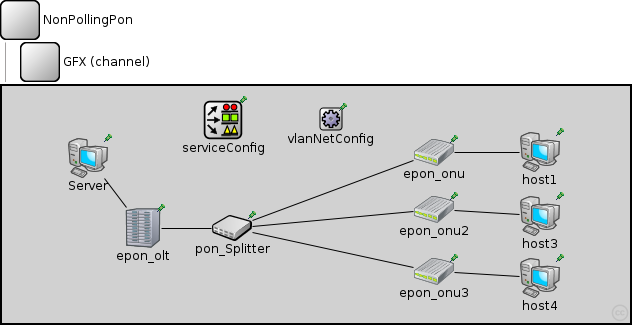

PON_Splitter EPON_ONU StandardVlanHost EPON_ONU EPON_ONU StandardVlanHost StandardVlanHost StandardVlanHost EPON_OLT ServiceConfig VlanNetConfig

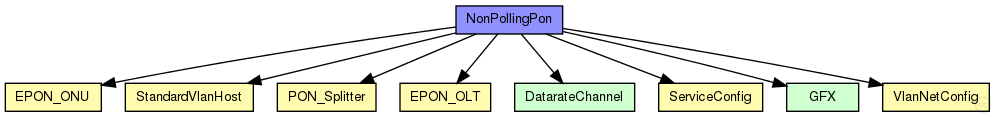

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Properties:

Name Value Description
isNetwork
display bgl=3

Unassigned submodule parameters:

Name Type Default value Description
pon_Splitter.haltOn int 10
epon_onu.onu_port.epon_mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu.onu_port.epon_mac.txQueueLimit int 2

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.
epon_onu.onu_port.epon_mac.queueModule string ""

name of optional external queue module
epon_onu.onu_port.epon_mac.mtu int 1500
epon_onu.onu_port.onu_Q_mgmt.regTimeOut int
epon_onu.onu_port.onu_Q_mgmt.queueLimit int
epon_onu.onu_port.onu_Q_mgmt.statsGranularity double
epon_onu.epon_ONU_relay.addressTableFile string
epon_onu.epon_ONU_relay.addressTableSize int
epon_onu.epon_ONU_relay.agingTime double
epon_onu.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
epon_onu.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
epon_onu.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
epon_onu.mac.queueModule string ""

name of optional external queue module
epon_onu.mac.mtu int 1500
host1.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
host1.tcp.delayedAcksEnabled bool false

delayed ACKs enabled/disabled
host1.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
host1.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
host1.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
host1.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
host1.tcp.mss int 536

maximum segment size (header option)
host1.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
host1.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
host1.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
host1.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
host1.sctp.numGapReports int 3

====== SCTP Association Parameters =================================
host1.sctp.rtoInitial double 3s
host1.sctp.rtoMin double 1s
host1.sctp.rtoMax double 60s
host1.sctp.rtoAlpha double 0.125
host1.sctp.rtoBeta double 0.250
host1.sctp.maxBurst int 4
host1.sctp.assocMaxRetrans int 10
host1.sctp.pathMaxRetrans int 5
host1.sctp.maxInitRetrans int 8
host1.sctp.sackPeriod double 200ms
host1.sctp.sackFrequency int 2
host1.sctp.reactivatePrimaryPath bool false
host1.sctp.sendQueueLimit int 0
host1.sctp.validCookieLifetime double 10s

====== Testing =====================================================
host1.sctp.enableHeartbeats bool true

====== Heartbeats ==================================================
host1.sctp.hbInterval double 30s
host1.sctp.nagleEnabled bool true

====== Nagle Algorithm =============================================
host1.sctp.naglePoint int 1468
host1.sctp.fastRecoverySupported bool true

====== Congestion Control ==========================================
host1.sctp.sctpAlgorithmClass string "SCTPAlg"
host1.sctp.ccModule int 0

RFC4960=0
host1.sctp.ssModule int 0

ROUND_ROBIN=0
host1.sctp.arwnd int 65535
host1.sctp.swsLimit int 3000

Limit for SWS
host1.sctp.udpEncapsEnabled bool false
host1.pingApp.destAddr string ""

destination IP or IPv6 address
host1.pingApp.srcAddr string ""

source IP or IPv6 address (useful with multi-homing)
host1.pingApp.packetSize double 56B

of ping payload, in bytes
host1.pingApp.interval double 1s

time to wait between pings (can be random)
host1.pingApp.hopLimit double 32

TTL or hopLimit for IP packets
host1.pingApp.count double 0

stop after count ping requests, 0 means continuously
host1.pingApp.startTime double uniform(0s,this.interval)

send first ping at startTime
host1.pingApp.stopTime double 0s

send no pings after stopTime, 0 means forever
host1.pingApp.printPing bool true

dump on stdout
host1.networkLayer_vlans.ip.procDelay double 0s
host1.networkLayer_vlans.arp_vlans.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IP address
host1.networkLayer_vlans.arp_vlans.retryCount int 3

number of times ARP will attempt to resolve an IP address
host1.networkLayer_vlans.arp_vlans.cacheTimeout double 120s

number seconds unused entries in the cache will time out
host1.networkLayer_vlans.arp_vlans.globalARP bool false
host1.ppp.ppp.mtu int 4470
host1.eth.mac.promiscuous bool true

ALWAYS TRUE... LLC Will take care...
host1.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host1.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host1.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host1.eth.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
host1.eth.mac.queueModule string ""

name of optional external queue module
host1.eth.mac.mtu int 1500
host1.eth.encap_vlans.vlans string ""
host1.eth.encap_vlans.vlan_txrate double 100Mbps
host1.ext.filterString string
host1.ext.device string
host1.ext.mtu int 1500
host1.tcpdump.dumpFile string ""
host1.tcpdump.threadEnable bool false
host1.tcpdump.snaplen int 65535
host1.tcpdump.verbosity int 0
epon_onu3.onu_port.epon_mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu3.onu_port.epon_mac.txQueueLimit int 2

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.
epon_onu3.onu_port.epon_mac.queueModule string ""

name of optional external queue module
epon_onu3.onu_port.epon_mac.mtu int 1500
epon_onu3.onu_port.onu_Q_mgmt.regTimeOut int
epon_onu3.onu_port.onu_Q_mgmt.queueLimit int
epon_onu3.onu_port.onu_Q_mgmt.statsGranularity double
epon_onu3.epon_ONU_relay.addressTableFile string
epon_onu3.epon_ONU_relay.addressTableSize int
epon_onu3.epon_ONU_relay.agingTime double
epon_onu3.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu3.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
epon_onu3.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
epon_onu3.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
epon_onu3.mac.queueModule string ""

name of optional external queue module
epon_onu3.mac.mtu int 1500
epon_onu2.onu_port.epon_mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu2.onu_port.epon_mac.txQueueLimit int 2

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.
epon_onu2.onu_port.epon_mac.queueModule string ""

name of optional external queue module
epon_onu2.onu_port.epon_mac.mtu int 1500
epon_onu2.onu_port.onu_Q_mgmt.regTimeOut int
epon_onu2.onu_port.onu_Q_mgmt.queueLimit int
epon_onu2.onu_port.onu_Q_mgmt.statsGranularity double
epon_onu2.epon_ONU_relay.addressTableFile string
epon_onu2.epon_ONU_relay.addressTableSize int
epon_onu2.epon_ONU_relay.agingTime double
epon_onu2.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_onu2.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
epon_onu2.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
epon_onu2.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
epon_onu2.mac.queueModule string ""

name of optional external queue module
epon_onu2.mac.mtu int 1500
host3.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
host3.tcp.delayedAcksEnabled bool false

delayed ACKs enabled/disabled
host3.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
host3.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
host3.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
host3.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
host3.tcp.mss int 536

maximum segment size (header option)
host3.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
host3.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
host3.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
host3.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
host3.sctp.numGapReports int 3

====== SCTP Association Parameters =================================
host3.sctp.rtoInitial double 3s
host3.sctp.rtoMin double 1s
host3.sctp.rtoMax double 60s
host3.sctp.rtoAlpha double 0.125
host3.sctp.rtoBeta double 0.250
host3.sctp.maxBurst int 4
host3.sctp.assocMaxRetrans int 10
host3.sctp.pathMaxRetrans int 5
host3.sctp.maxInitRetrans int 8
host3.sctp.sackPeriod double 200ms
host3.sctp.sackFrequency int 2
host3.sctp.reactivatePrimaryPath bool false
host3.sctp.sendQueueLimit int 0
host3.sctp.validCookieLifetime double 10s

====== Testing =====================================================
host3.sctp.enableHeartbeats bool true

====== Heartbeats ==================================================
host3.sctp.hbInterval double 30s
host3.sctp.nagleEnabled bool true

====== Nagle Algorithm =============================================
host3.sctp.naglePoint int 1468
host3.sctp.fastRecoverySupported bool true

====== Congestion Control ==========================================
host3.sctp.sctpAlgorithmClass string "SCTPAlg"
host3.sctp.ccModule int 0

RFC4960=0
host3.sctp.ssModule int 0

ROUND_ROBIN=0
host3.sctp.arwnd int 65535
host3.sctp.swsLimit int 3000

Limit for SWS
host3.sctp.udpEncapsEnabled bool false
host3.pingApp.destAddr string ""

destination IP or IPv6 address
host3.pingApp.srcAddr string ""

source IP or IPv6 address (useful with multi-homing)
host3.pingApp.packetSize double 56B

of ping payload, in bytes
host3.pingApp.interval double 1s

time to wait between pings (can be random)
host3.pingApp.hopLimit double 32

TTL or hopLimit for IP packets
host3.pingApp.count double 0

stop after count ping requests, 0 means continuously
host3.pingApp.startTime double uniform(0s,this.interval)

send first ping at startTime
host3.pingApp.stopTime double 0s

send no pings after stopTime, 0 means forever
host3.pingApp.printPing bool true

dump on stdout
host3.networkLayer_vlans.ip.procDelay double 0s
host3.networkLayer_vlans.arp_vlans.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IP address
host3.networkLayer_vlans.arp_vlans.retryCount int 3

number of times ARP will attempt to resolve an IP address
host3.networkLayer_vlans.arp_vlans.cacheTimeout double 120s

number seconds unused entries in the cache will time out
host3.networkLayer_vlans.arp_vlans.globalARP bool false
host3.ppp.ppp.mtu int 4470
host3.eth.mac.promiscuous bool true

ALWAYS TRUE... LLC Will take care...
host3.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host3.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host3.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host3.eth.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
host3.eth.mac.queueModule string ""

name of optional external queue module
host3.eth.mac.mtu int 1500
host3.eth.encap_vlans.vlans string ""
host3.eth.encap_vlans.vlan_txrate double 100Mbps
host3.ext.filterString string
host3.ext.device string
host3.ext.mtu int 1500
host3.tcpdump.dumpFile string ""
host3.tcpdump.threadEnable bool false
host3.tcpdump.snaplen int 65535
host3.tcpdump.verbosity int 0
host4.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
host4.tcp.delayedAcksEnabled bool false

delayed ACKs enabled/disabled
host4.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
host4.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
host4.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
host4.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
host4.tcp.mss int 536

maximum segment size (header option)
host4.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
host4.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
host4.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
host4.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
host4.sctp.numGapReports int 3

====== SCTP Association Parameters =================================
host4.sctp.rtoInitial double 3s
host4.sctp.rtoMin double 1s
host4.sctp.rtoMax double 60s
host4.sctp.rtoAlpha double 0.125
host4.sctp.rtoBeta double 0.250
host4.sctp.maxBurst int 4
host4.sctp.assocMaxRetrans int 10
host4.sctp.pathMaxRetrans int 5
host4.sctp.maxInitRetrans int 8
host4.sctp.sackPeriod double 200ms
host4.sctp.sackFrequency int 2
host4.sctp.reactivatePrimaryPath bool false
host4.sctp.sendQueueLimit int 0
host4.sctp.validCookieLifetime double 10s

====== Testing =====================================================
host4.sctp.enableHeartbeats bool true

====== Heartbeats ==================================================
host4.sctp.hbInterval double 30s
host4.sctp.nagleEnabled bool true

====== Nagle Algorithm =============================================
host4.sctp.naglePoint int 1468
host4.sctp.fastRecoverySupported bool true

====== Congestion Control ==========================================
host4.sctp.sctpAlgorithmClass string "SCTPAlg"
host4.sctp.ccModule int 0

RFC4960=0
host4.sctp.ssModule int 0

ROUND_ROBIN=0
host4.sctp.arwnd int 65535
host4.sctp.swsLimit int 3000

Limit for SWS
host4.sctp.udpEncapsEnabled bool false
host4.pingApp.destAddr string ""

destination IP or IPv6 address
host4.pingApp.srcAddr string ""

source IP or IPv6 address (useful with multi-homing)
host4.pingApp.packetSize double 56B

of ping payload, in bytes
host4.pingApp.interval double 1s

time to wait between pings (can be random)
host4.pingApp.hopLimit double 32

TTL or hopLimit for IP packets
host4.pingApp.count double 0

stop after count ping requests, 0 means continuously
host4.pingApp.startTime double uniform(0s,this.interval)

send first ping at startTime
host4.pingApp.stopTime double 0s

send no pings after stopTime, 0 means forever
host4.pingApp.printPing bool true

dump on stdout
host4.networkLayer_vlans.ip.procDelay double 0s
host4.networkLayer_vlans.arp_vlans.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IP address
host4.networkLayer_vlans.arp_vlans.retryCount int 3

number of times ARP will attempt to resolve an IP address
host4.networkLayer_vlans.arp_vlans.cacheTimeout double 120s

number seconds unused entries in the cache will time out
host4.networkLayer_vlans.arp_vlans.globalARP bool false
host4.ppp.ppp.mtu int 4470
host4.eth.mac.promiscuous bool true

ALWAYS TRUE... LLC Will take care...
host4.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host4.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host4.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host4.eth.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
host4.eth.mac.queueModule string ""

name of optional external queue module
host4.eth.mac.mtu int 1500
host4.eth.encap_vlans.vlans string ""
host4.eth.encap_vlans.vlan_txrate double 100Mbps
host4.ext.filterString string
host4.ext.device string
host4.ext.mtu int 1500
host4.tcpdump.dumpFile string ""
host4.tcpdump.threadEnable bool false
host4.tcpdump.snaplen int 65535
host4.tcpdump.verbosity int 0
Server.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
Server.tcp.delayedAcksEnabled bool false

delayed ACKs enabled/disabled
Server.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
Server.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
Server.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
Server.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
Server.tcp.mss int 536

maximum segment size (header option)
Server.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
Server.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
Server.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
Server.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
Server.sctp.numGapReports int 3

====== SCTP Association Parameters =================================
Server.sctp.rtoInitial double 3s
Server.sctp.rtoMin double 1s
Server.sctp.rtoMax double 60s
Server.sctp.rtoAlpha double 0.125
Server.sctp.rtoBeta double 0.250
Server.sctp.maxBurst int 4
Server.sctp.assocMaxRetrans int 10
Server.sctp.pathMaxRetrans int 5
Server.sctp.maxInitRetrans int 8
Server.sctp.sackPeriod double 200ms
Server.sctp.sackFrequency int 2
Server.sctp.reactivatePrimaryPath bool false
Server.sctp.sendQueueLimit int 0
Server.sctp.validCookieLifetime double 10s

====== Testing =====================================================
Server.sctp.enableHeartbeats bool true

====== Heartbeats ==================================================
Server.sctp.hbInterval double 30s
Server.sctp.nagleEnabled bool true

====== Nagle Algorithm =============================================
Server.sctp.naglePoint int 1468
Server.sctp.fastRecoverySupported bool true

====== Congestion Control ==========================================
Server.sctp.sctpAlgorithmClass string "SCTPAlg"
Server.sctp.ccModule int 0

RFC4960=0
Server.sctp.ssModule int 0

ROUND_ROBIN=0
Server.sctp.arwnd int 65535
Server.sctp.swsLimit int 3000

Limit for SWS
Server.sctp.udpEncapsEnabled bool false
Server.pingApp.destAddr string ""

destination IP or IPv6 address
Server.pingApp.srcAddr string ""

source IP or IPv6 address (useful with multi-homing)
Server.pingApp.packetSize double 56B

of ping payload, in bytes
Server.pingApp.interval double 1s

time to wait between pings (can be random)
Server.pingApp.hopLimit double 32

TTL or hopLimit for IP packets
Server.pingApp.count double 0

stop after count ping requests, 0 means continuously
Server.pingApp.startTime double uniform(0s,this.interval)

send first ping at startTime
Server.pingApp.stopTime double 0s

send no pings after stopTime, 0 means forever
Server.pingApp.printPing bool true

dump on stdout
Server.networkLayer_vlans.ip.procDelay double 0s
Server.networkLayer_vlans.arp_vlans.retryTimeout double 1s

number seconds ARP waits between retries to resolve an IP address
Server.networkLayer_vlans.arp_vlans.retryCount int 3

number of times ARP will attempt to resolve an IP address
Server.networkLayer_vlans.arp_vlans.cacheTimeout double 120s

number seconds unused entries in the cache will time out
Server.networkLayer_vlans.arp_vlans.globalARP bool false
Server.ppp.ppp.mtu int 4470
Server.eth.mac.promiscuous bool true

ALWAYS TRUE... LLC Will take care...
Server.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Server.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Server.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Server.eth.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
Server.eth.mac.queueModule string ""

name of optional external queue module
Server.eth.mac.mtu int 1500
Server.eth.encap_vlans.vlans string ""
Server.eth.encap_vlans.vlan_txrate double 100Mbps
Server.ext.filterString string
Server.ext.device string
Server.ext.mtu int 1500
Server.tcpdump.dumpFile string ""
Server.tcpdump.threadEnable bool false
Server.tcpdump.snaplen int 65535
Server.tcpdump.verbosity int 0
epon_olt.epon_OLT_relay.addressTableFile string

set to empty string if not used
epon_olt.epon_OLT_relay.addressTableSize int

max size of address table
epon_olt.epon_OLT_relay.agingTime double

max idle time for address table entries (when it expires, entry is removed from the table)
epon_olt.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_olt.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
epon_olt.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
epon_olt.mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
epon_olt.mac.queueModule string ""

name of optional external queue module
epon_olt.mac.mtu int 1500
epon_olt.olt_if.epon_mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
epon_olt.olt_if.epon_mac.txQueueLimit int 2

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.
epon_olt.olt_if.epon_mac.queueModule string ""

name of optional external queue module
epon_olt.olt_if.epon_mac.mtu int 1500
epon_olt.olt_if.olt_Q_mgmt.slotLength int
epon_olt.olt_if.olt_Q_mgmt.slotNumber int
epon_olt.olt_if.olt_Q_mgmt.regTimeInt int
epon_olt.olt_if.olt_Q_mgmt.regAckTimeOut int
epon_olt.olt_if.olt_Q_mgmt.queueLimit int
epon_olt.olt_if.olt_Q_mgmt.datarateLimit int

Limit the assigned bandwidth to scale down the simulation
serviceConfig.services string "DATA"

Service Names (whatever you like here)
serviceConfig.srvPrior string "1.0"

Service priority. Total sum must be 1
serviceConfig.vlanMap string "0"

Vlan map
serviceConfig.msrPerFlow string "1000000"

MSR per flow, default 1Mbps (-1 = Unlimited)
serviceConfig.mrrPerFlow string "1000000"

MRR per flow, default 1Mbps (-1 = Unlimited)

Source code:

network NonPollingPon
{
    @display("bgl=3");
    types:
        channel GFX extends DatarateChannel
        {
            datarate = 1Gbps;
        }
    submodules:
        pon_Splitter: PON_Splitter {
            @display("p=230,142");
        }
        epon_onu: EPON_ONU {
            @display("p=432,66");
        }
        host1: StandardVlanHost {
            @display("p=538,66");
        }
        epon_onu3: EPON_ONU {
            @display("p=432,185");
        }
        epon_onu2: EPON_ONU {
            @display("p=432,123");
        }
        host3: StandardVlanHost {
            @display("p=538,130");
        }
        host4: StandardVlanHost {
            @display("p=538,192");
        }
        Server: StandardVlanHost {
            @display("p=86,72");
        }
        epon_olt: EPON_OLT {
            @display("p=141,142");
        }
        serviceConfig: ServiceConfig {
            @display("p=221,34");
        }
        vlanNetConfig: VlanNetConfig {
            @display("p=329,33");
        }
    connections:

        // to splitter
        epon_olt.epon <--> GFX <--> pon_Splitter.portu;
        pon_Splitter.portg++ <--> GFX <--> epon_onu.epon;
        pon_Splitter.portg++ <--> GFX <--> epon_onu2.epon;
        pon_Splitter.portg++ <--> GFX <--> epon_onu3.epon;

        // Hosts
        epon_onu.ethg <--> DatarateChannel <--> host1.ethg++;
        epon_onu2.ethg <--> DatarateChannel <--> host3.ethg++;
        epon_onu3.ethg <--> DatarateChannel <--> host4.ethg++;
        epon_olt.ethg <--> DatarateChannel <--> Server.ethg++;

}

This documentation is released under the Creative Commons license
