Simple Module ServiceConfig

C++ definition

A module to keep track of multi-service scenarios. Here we register the services available, the priority of each service and any other needed information. Since we are working with VLANs - we map traffic from various technologies into different vlans - we are going to register this too. Finally for the access network we have a per client/flow configuration. This is the MSR (Maximum Sustained Rate) used mainly in WiMax modules.

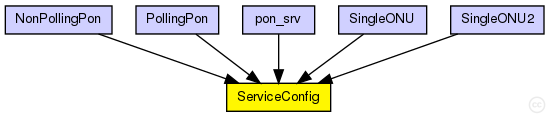

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Networks:

Parameters:

Properties:

Source code:

//
// A module to keep track of multi-service
// scenarios. Here we register the services
// available, the priority of each service and
// any other needed information. Since we are working
// with VLANs - we map traffic from various
// technologies into different vlans - we are
// going to register this too. Finally for the access
// network we have a per client/flow configuration.
// This is the MSR (Maximum Sustained Rate) used mainly
// in WiMax modules.
//
simple ServiceConfig
{
    parameters:
        string services = default("DATA");		// Service Names (whatever you like here)
        string srvPrior = default("1.0");		// Service priority. Total sum must be 1
        string vlanMap = default("0"); 			// Vlan map
        string msrPerFlow = default("1000000"); // MSR per flow, default 1Mbps (-1 = Unlimited)
        string mrrPerFlow = default("1000000"); // MRR per flow, default 1Mbps (-1 = Unlimited)

        @display("i=block/classifier");
}
