Compound Module EtherVlanInterface

Package: Vlans.linklayer
File: src/linklayer/EtherVlanInterface.ned

TODO auto-generated module

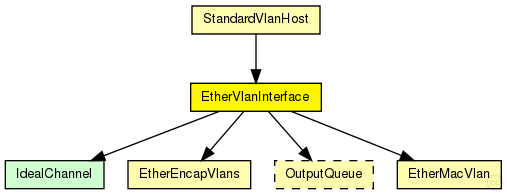

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

StandardVlanHost (compound module)

IP host with TCP, UDP layers and applications.

Parameters:

Name	Type	Default value	Description
QMgmtUnit	string	"Q_mgmt_PerVlan"

Properties:

Name	Value	Description
display	bgb=296,121;i=block/ifcard

Gates:

Name	Direction	Size	Description
netwIn	input
netwOut	output
phys	inout

Unassigned submodule parameters:

Name	Type	Default value	Description
mac.promiscuous	bool	true	ALWAYS TRUE... LLC Will take care...
mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
mac.txQueueLimit	int	1000	maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""
mac.queueModule	string	""	name of optional external queue module
mac.mtu	int	1500
encap_vlans.vlans	string	""
encap_vlans.vlan_txrate	double	100Mbps

Source code:

//
// TODO auto-generated module
//
module EtherVlanInterface like INetworkInterface
{
    parameters:
        @display("bgb=296,121;i=block/ifcard");
        string QMgmtUnit = default("Q_mgmt_PerVlan");
    gates:
        input netwIn;
        output netwOut;
        inout phys;

    submodules:
        mac: EtherMacVlan {
            @display("p=54,58");
            promiscuous = default(true);
        }
        encap_vlans: EtherEncapVlans {
            @display("p=148,58");
        }
        queue: <QMgmtUnit> like OutputQueue {
            @display("p=245,58");
        }

    connections:
        netwIn --> queue.in;
        queue.out --> encap_vlans.upperLayerIn;
        netwOut <-- { @display("m=n"); } <-- encap_vlans.upperLayerOut;
        encap_vlans.lowerLayerOut --> mac.upperLayerIn;
        encap_vlans.lowerLayerIn <-- mac.upperLayerOut;
        mac.phys <--> phys;

}
