Compound Module EPON_OLT

Package: PON.OLT
File: src/OLT/EPON_OLT.ned

TODO auto-generated module

EPON_OLT_relay EtherMacVlan OLT_IF ONUTable

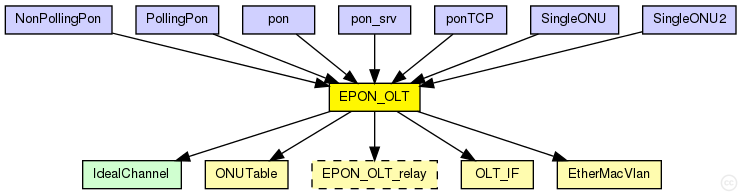

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Networks:

NonPollingPon (network) (no description)
PollingPon (network) (no description)
pon (network) (no description)
pon_srv (network) (no description)
ponTCP (network) (no description)
SingleONU (network) (no description)
SingleONU2 (network) (no description)

Parameters:

Name Type Default value Description
relayUnitType string "EPON_OLT_relayDefault"

Properties:

Name Value Description
node
display i=device/router

Gates:

Name Direction Size Description
ethg inout
epon inout

Unassigned submodule parameters:

Name Type Default value Description
epon_OLT_relay.addressTableFile string

set to empty string if not used

epon_OLT_relay.addressTableSize int

max size of address table

epon_OLT_relay.agingTime double

max idle time for address table entries (when it expires, entry is removed from the table)

mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.

mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.

mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).

mac.txQueueLimit int 1000

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule==""

mac.queueModule string ""

name of optional external queue module

mac.mtu int 1500
olt_if.epon_mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.

olt_if.epon_mac.txQueueLimit int 2

maximum number of frames queued up for transmission; additional frames are dropped. Only used if queueModule=="" The 2nd frame is used in case of changing registers with MPCP ... sometimes 1 is already transmitted and the next MPCP decides to transmitt again with the new times.

olt_if.epon_mac.queueModule string ""

name of optional external queue module

olt_if.epon_mac.mtu int 1500
olt_if.olt_Q_mgmt.slotLength int
olt_if.olt_Q_mgmt.slotNumber int
olt_if.olt_Q_mgmt.regTimeInt int
olt_if.olt_Q_mgmt.regAckTimeOut int
olt_if.olt_Q_mgmt.queueLimit int
olt_if.olt_Q_mgmt.datarateLimit int

Limit the assigned bandwidth to scale down the simulation

Source code:

//
// TODO auto-generated module
//
module EPON_OLT
{
    parameters:
        @node();
        @display("i=device/router");
        string relayUnitType = default("EPON_OLT_relayDefault");
    gates:
        inout ethg;
        inout epon;
    submodules:
        epon_OLT_relay: <relayUnitType> like EPON_OLT_relay {
            @display("p=106,105");
        }
        mac: EtherMacVlan {
            @display("p=47,185");
            promiscuous = true;
        }
        olt_if: OLT_IF {
            @display("p=165,185");
        }
        onuTable: ONUTable {
            @display("p=39,26");
        }
    connections:

        mac.upperLayerIn <-- epon_OLT_relay.ethOut;
        mac.upperLayerOut --> epon_OLT_relay.ethIn;
        mac.phys <--> ethg;

        epon_OLT_relay.toPONout --> olt_if.netwIn;
        olt_if.netwOut --> epon_OLT_relay.toPONin;

        olt_if.phys <--> epon;
}
